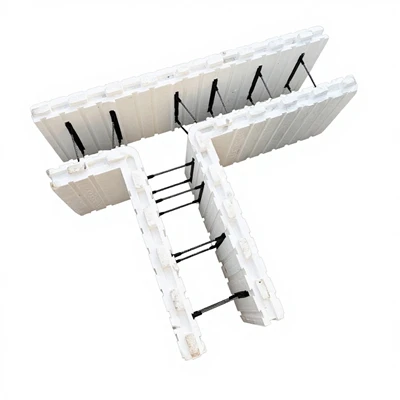

ICF blocks (Insulated Concrete Form) , this type of housing features a monolithic insulation structure. In contrast to traditional brick-and-mortar homes-where the insulation layer often fails to withstand repeated freeze-thaw cycles and tends to gradually detach after 20 to 30 years-the insulation in these modular homes is constructed as an integral part of the wall itself. Consequently, the need for future maintenance is minimal, offering you complete peace of mind. The finished wall consists of a poured concrete core, yet the EPS foam layers on both sides remain permanently in place, serving simultaneously as thermal insulation and as a substrate for installing both interior and exterior wall finishes.
Product Specification
|
Parameter |
Value |
|
Item Name |
icf blocks insulated concrete forms |
|
Feature |
Waterproof,thermal insulation |
|
Application |
Schools, hospitals, office buildings, hotels, |
|
EPS Layer Thickness |
55mm |
|
Concrete Wall Thickness |
140mm,170mm,210mm |
|
Type |
Detachable |
|
Material |
EPS Expanded Polystyrene |
|
EPS Density |
30-45kg/m³ |
|
Package |
Plastic Film Wrap |
|
Color |
White, Gray |
|
Advantage |
Long Lifespan |
|
MOQ |
60 SET |
|
Function |
Insulated Wall Panel |
Advantages
High Thermal Mass
The high-density concrete core possesses powerful heat storage capabilities, effectively buffering indoor temperature fluctuations.
Fire Safety
The concrete core, combined with flame-retardant foam, provides excellent fire-resistant performance.
Waste Reduction
Precisely prefabricated factory modules minimize on-site cutting, resulting in significantly less construction waste compared to traditional building methods.
Indoor Air Quality
ICF walls are solid and cavity-free; furthermore, the foam material itself is resistant to mold and mildew growth, thereby contributing positively to improved indoor air quality.
Applications of ICF
Residential Buildings
Single-family homes, apartments, and townhouses.
Commercial Buildings
Offices, hotels, and retail spaces.
Industrial Facilities
Warehouses, factories, and storage units.
Institutional Buildings
Schools, hospitals, and government buildings.
Certificate
Our Company
Shanxi Rongshengchang New Materials Co., Ltd. was founded in 2008 and is situated in the Shuixiu Industrial Park, Taigu, Shanxi. With a total investment of over RMB 50 million, the company spans a site area of 30,000 square meters and has dedicated 17 years to the production of thermal insulation building materials.
Our product portfolio includes: eco-friendly extruded polystyrene (XPS) boards, expanded polystyrene (EPS) boards, rock wool, glass wool, integrated insulation and formwork panels, various architectural moldings, Insulated Concrete Form (ICF) modules, underfloor heating panels, decorative composite panels, and other primary and auxiliary insulation materials.
These products serve as building insulation materials, primarily applied in exterior wall insulation systems, building wall structural systems, roof insulation systems, floor and slab insulation, as well as architectural facade decoration.
We hold CE certification, Quality Management System Certification, Environmental Management System Certification, and relevant test reports.
The company operates five production lines: EPS exterior decorative moldings, EPS polystyrene boards, XPS extruded polystyrene boards, sandwich panels, and ICF concrete modules.
