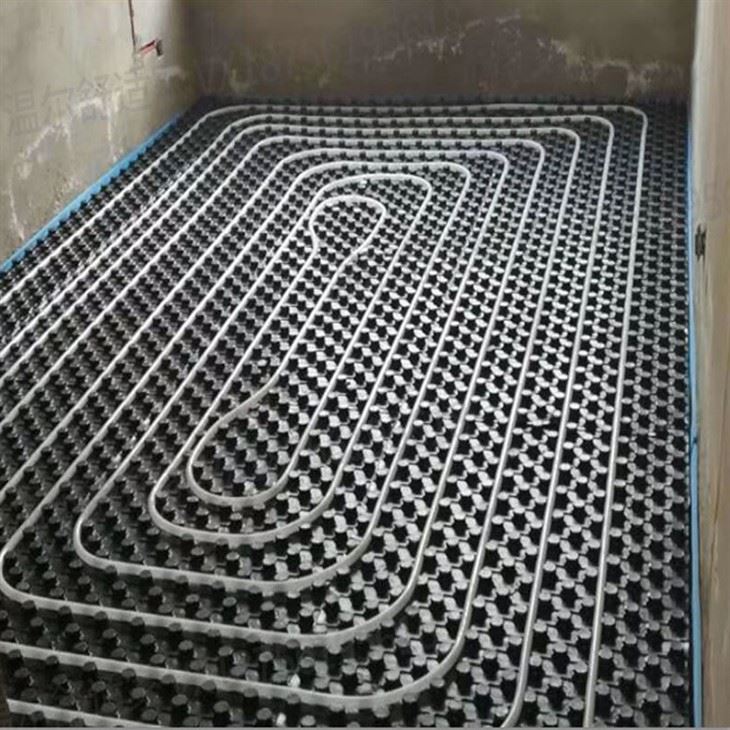

EPS (expanded polystyrene) is a lightweight, closed-cell foam insulation material widely used in the construction industry. When used in underfloor heating systems, EPS panels help reduce downward heat loss and transfer more heat to the floor finish.
The pre-cut groove design ensures that heating pipes are laid securely and evenly according to the required pipe spacing. This helps create a more uniform heating layout and simplifies the installation process.
Depending on the system design, EPS underfloor heating panels can be used in conjunction with PEX-a, PEX-b, PEX-c, PE-RT aluminum-plastic composite pipes, and other suitable hydronic piping.
Features: Quick installation. Pipe suspension. Prevents pipe deformation due to pressure during backfilling. Space-saving.
Product structure
Product Structure
A typical EPS underfloor heating system may include:
Finished floor
Screed or dry flooring layer, depending on the system
Heating pipe
EPS insulation/heating panel
Structural floor or subfloor
The exact system structure should be selected according to the heating system design, floor construction, load requirements, and applicable local building standards.
Product Advantage
Thermal Insulation
EPS has low thermal conductivity and provides an effective insulation layer beneath the heating system. It helps reduce heat transfer toward the subfloor and improves the utilization of heating energy.
Lightweight Construction
EPS panels are lightweight compared with many traditional insulation materials, making them easier to transport, carry, cut, and install on site.
Easy Pipe Installation
Pre-formed grooves provide designated channels for heating pipes. Installers can follow the designed pipe layout without spending additional time creating pipe channels manually.
Uniform Pipe Layout
The molded groove pattern helps maintain consistent pipe spacing, which can contribute to more uniform heat distribution across the floor.
Labor Saving
The ready-to-install panel design can simplify the installation process and potentially reduce installation time and labor requirements.
Customizable Design
Panel dimensions, thickness, density, pipe groove diameter, groove spacing, and layout can be customized according to project requirements.
Available Panel Designs
EPS underfloor heating panels can be supplied in different designs, including:
Flat EPS insulation panels
Grooved EPS heating panels
Pre-grooved EPS panels
Pipe-channel EPS panels
EPS panels with reflective film
EPS panels with aluminum heat-spreading components
Custom molded EPS heating panels
The appropriate design depends on the installation method and heating system.
