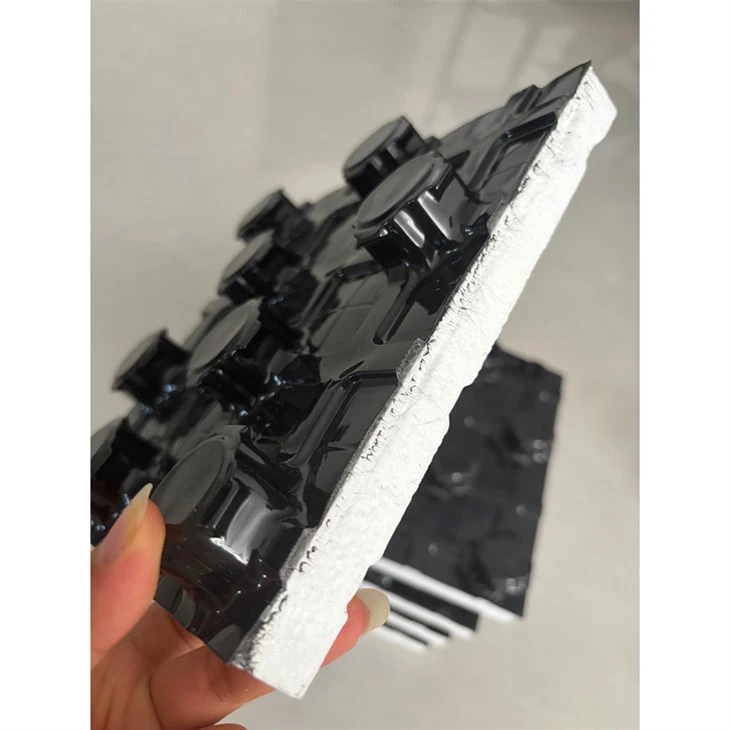

EPS Radiant Floor Heating Panel
The EPS radiant floor heating panel is a lightweight, energy-efficient insulation panel specifically designed for hydronic radiant floor heating systems. Made from high-quality expanded polystyrene (EPS), this panel not only offers excellent thermal insulation but also directs heat upward, enabling more efficient and uniform floor heating.
The panels can be pre-fabricated with grooves or channels to facilitate the installation of PEX tubing or other heating pipes. Their lightweight design makes handling and installation more convenient, helping to reduce construction time and lower labor costs.
EPS underfloor heating panels are suitable for residential, commercial, and industrial buildings, including both new construction and renovation projects. They can be customized to meet project requirements in terms of density, thickness, dimensions, and groove design.
Product structure
Product Description
EPS, or Expanded Polystyrene, is a lightweight closed-cell foam insulation material widely used in the building industry. When used in underfloor heating systems, EPS panels help reduce downward heat loss and guide more heat toward the finished floor surface.
The pre-grooved design allows heating pipes to be positioned securely and evenly according to the required pipe spacing. This helps create a more organized heating layout and facilitates installation.
EPS underfloor heating panels can be used with PEX, PERT, and other suitable hydronic heating pipes, depending on the system design.
Products Properties
|
Surface layer size |
1450*850mm |
|
Module area |
1.23㎡ |
|
Pipe size |
16mm/20mm |
|
Material |
EPS insulation layer + PS fixed layer |
|
Insulation layer thickness |
10mm,20mm,30mm |
|
Compressive strength |
≥250kpa |
|
Thermal conductivity |
≤0.036W/(m·k) |
|
Transport Packaging |
Carton Packing |
|
Features |
Quick installation. Pipe suspension. Prevent back pressure deformation when backfill .Save space. |
|
EPS size |
1400*800mm |
|
EPS flame retardancy rating |
B1 |
|
EPS water absorption rate |
≤2 |
|
dimensional stability |
≤2 |
Product Display
Product Advantage
Key Features:
Excellent thermal insulation performance
Lightweight and easy to handle
Pre-grooved design for fast pipe installation
Compatible with hydronic and PEX underfloor heating systems
Helps improve heating efficiency and heat distribution
Available in different thicknesses and densities
Custom sizes and groove patterns available
Suitable for residential and commercial applications
Applications:
Residential buildings, apartments, hotels, offices, schools, commercial buildings, and other projects using hydronic underfloor heating systems.
